Mehr ->Landwasser viaduct layouts at different scales (H0, TT, N)
Erstellt am Freitag, 22. Januar 2021, zuletzt aktualisiert am Dienstag, 26. Januar 2021

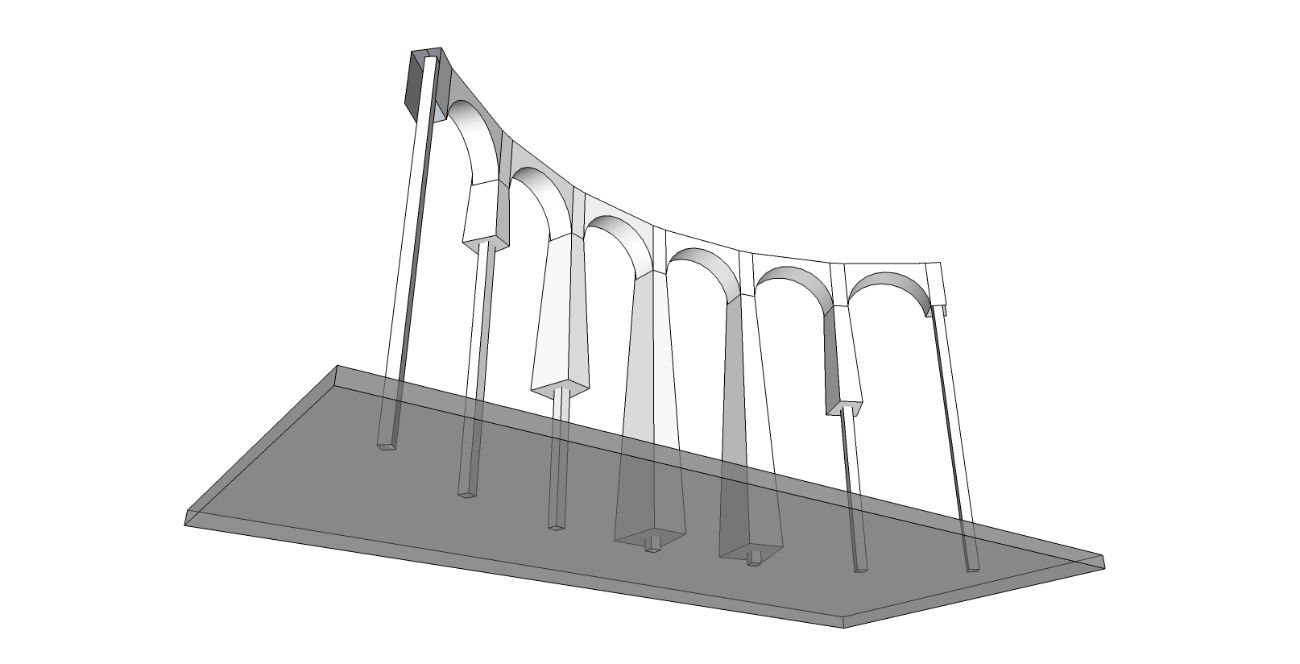

Hi there. Sometime, someone asks me for drawings of the viaduct in different scales. I link here 3 zip files containing pdf layouts. Print them on ISO A0 plotter and use the individual components of the drawings as templates for tracing outlines on 3mm height plates. Then cut and assemble the components. First prepare a frame with 7 wooden pillars, the top and the bottom.
Bye.
https://dalli.it/download/N_layout.zip
https://dalli.it/download/TT_layout.zip
https://dalli.it/download/H0_layout.zip
